NPG-MUC12/PGCA

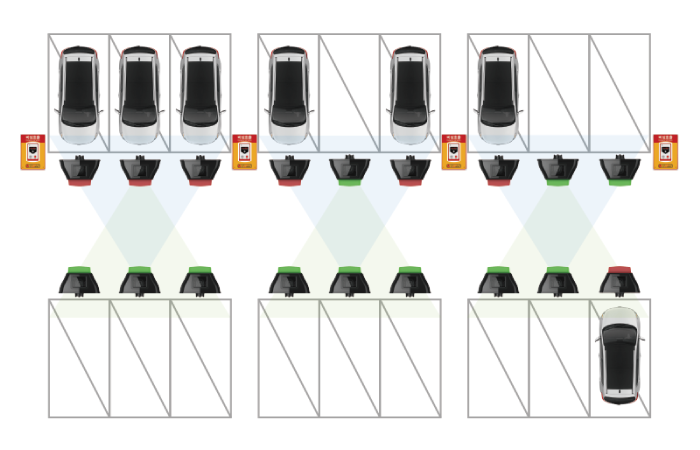

Installed on the 2 lines of raceway in a corridor to detect vehicles on the opposite side row and recognize license plate number
Client oriented IP Camera Seonsor
The embedded LED indicator of uni-directional IP camera shows the availability of the parking lot(s) underneath. Also, the sub LED indicator can be connected to show the each parking lot's status for drivers and guide them much faster.
Various types for project site conditions

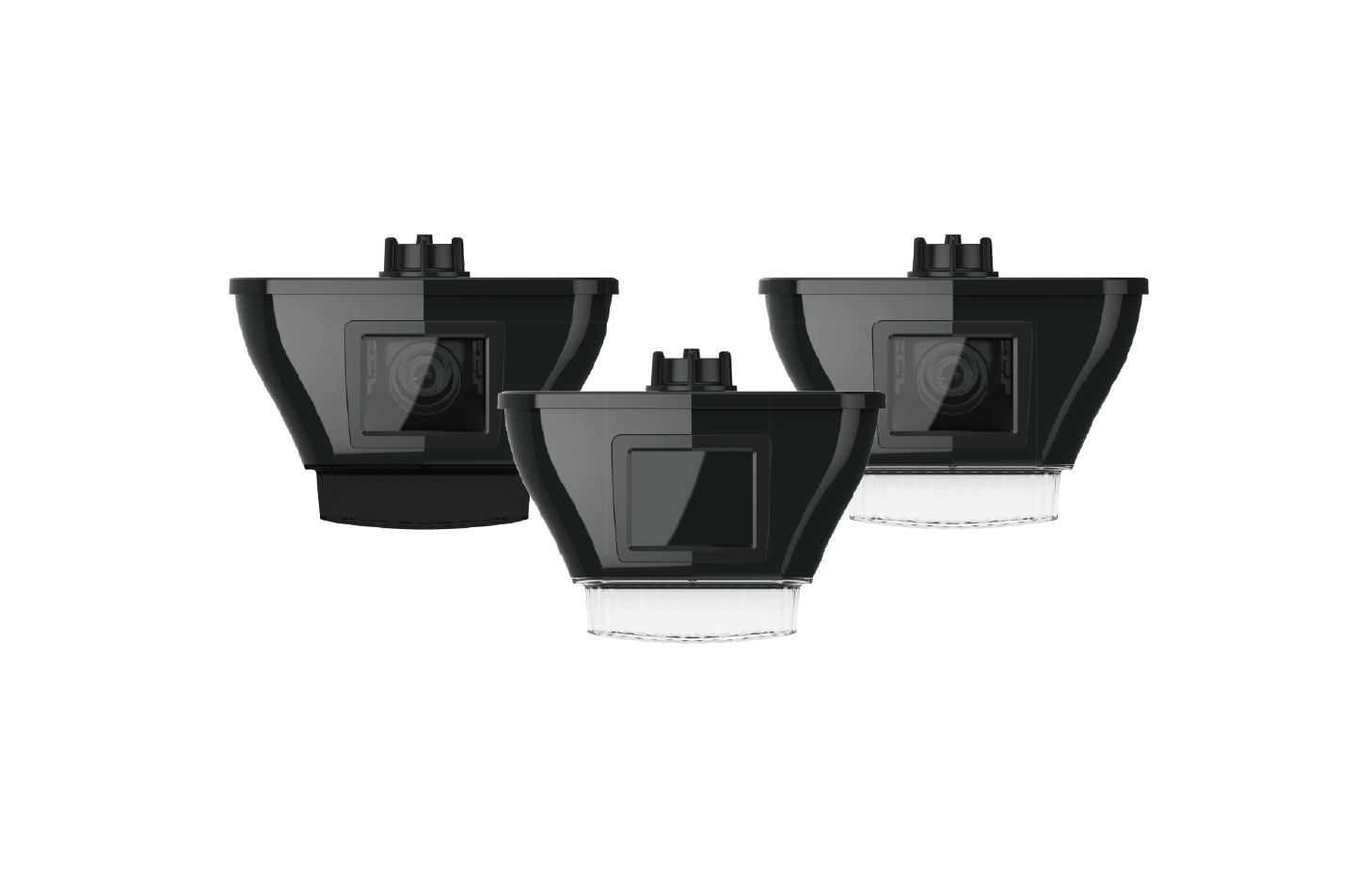

This model has various types for different site conditions; Type A, B, and LED indicator. Type A is a normal type which has camera and LED indicator. The others only has a camera or a LED indicator for the case that there is not parking lot row on the opposite side.
DETAILS
- Imaging Device
- 1/2.3" 12.4M CMOS (Rolling shutter)
- Total pixel
- 4072(H) x 3046(V)
- Scanning Method
- Progressive scan
- Operating Illumination
- 20 lux F1.4
- Electronic shutter
- Minimum / Maximum (1/12000~1/15 second)
- Ethernet
- RJ-45 (10/100 BASE-T)
- Video compression
- H.264 (MPEG-4 part 10/AVC), MJPEG
- H.264
- Maximum 15fps@4032*3024
- MJPEG
- Maximum 15fps@4032*3024
- Bitrate control
- H.264 - CBR or VBR / MJPEG -VBR
- Power Supply
- PoE (IEEE802.3af class3)
- Electricity consumption
- Maximum 5W
- LED
- 256 color LED drive circuit include
- Zoom & Focus
- Zoom & Focus drive circuit include
- EEPROM
- Include EEPROM for secure camera configuration
- IP rate
- IP66
