NEXPA SYSTEM

VPGS

NPG-OMC12NW

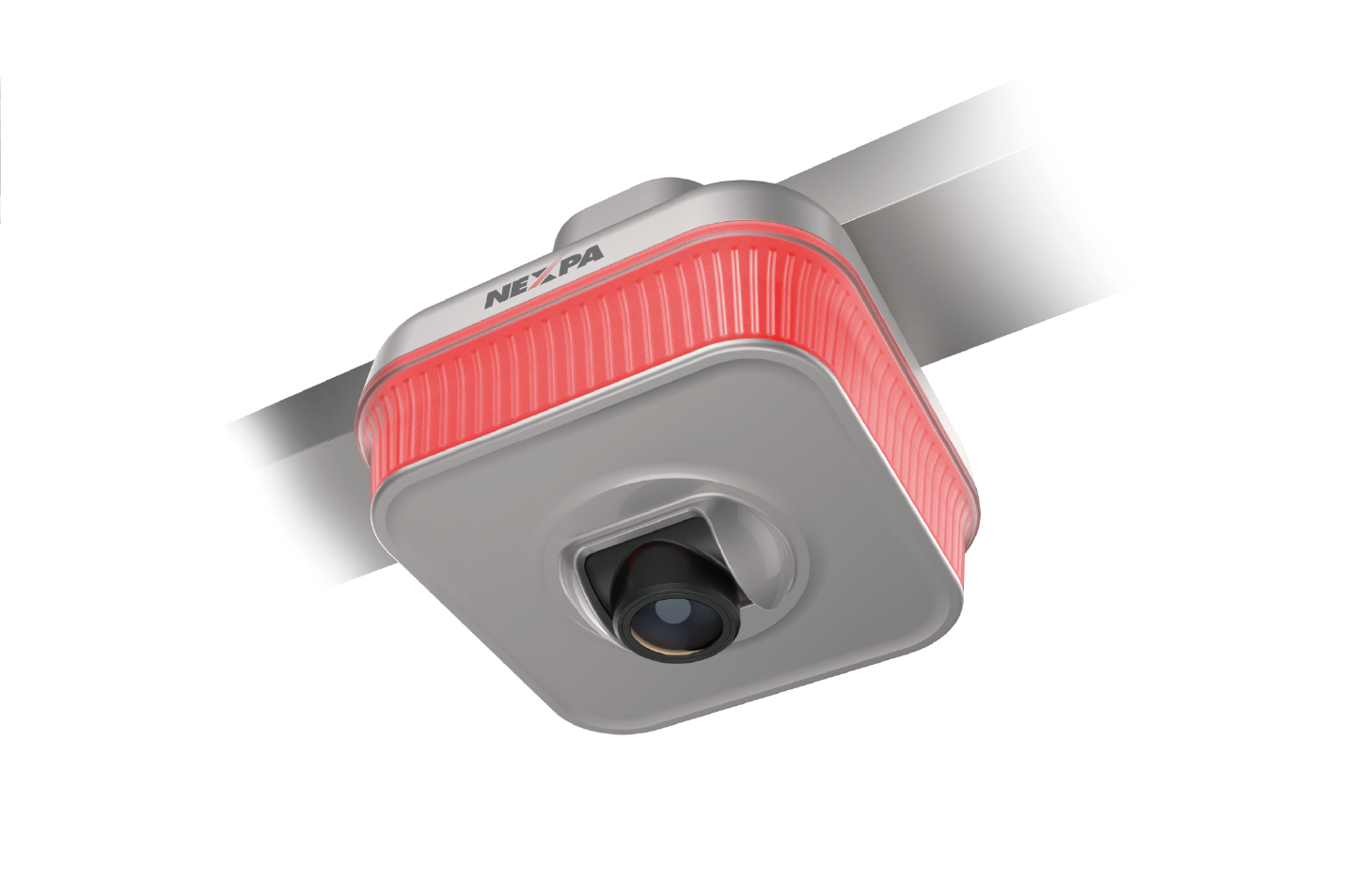

Installed in the middle of driveway on the ceiling to detect cars in parking spaces and recognize license plate number

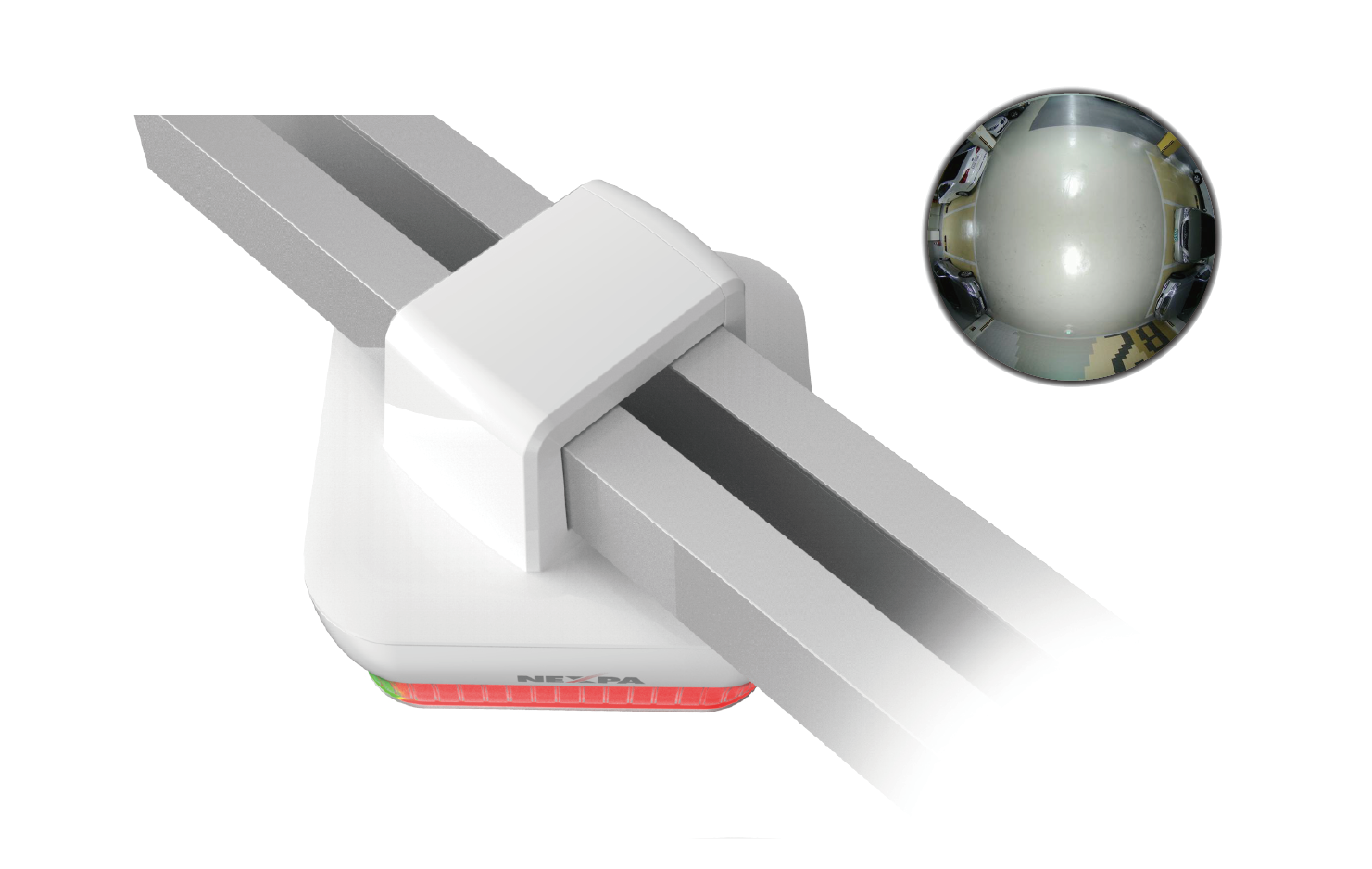

Fish-eye Lens 360 degree panorama view

Omni-directional IP camera sensor uses fish-eye lens which has a 360 degree panorama view. This model is much economical because it covers Max. 6 parking lots for LPR and Max. 12 parking lots for detection concurrently. Also there is no blind spot for security surveillance


Designed in an unique way and good-looking

One of the strength of this model is its good and unique design. NEXPA thinks the interior design factor too for your parking.

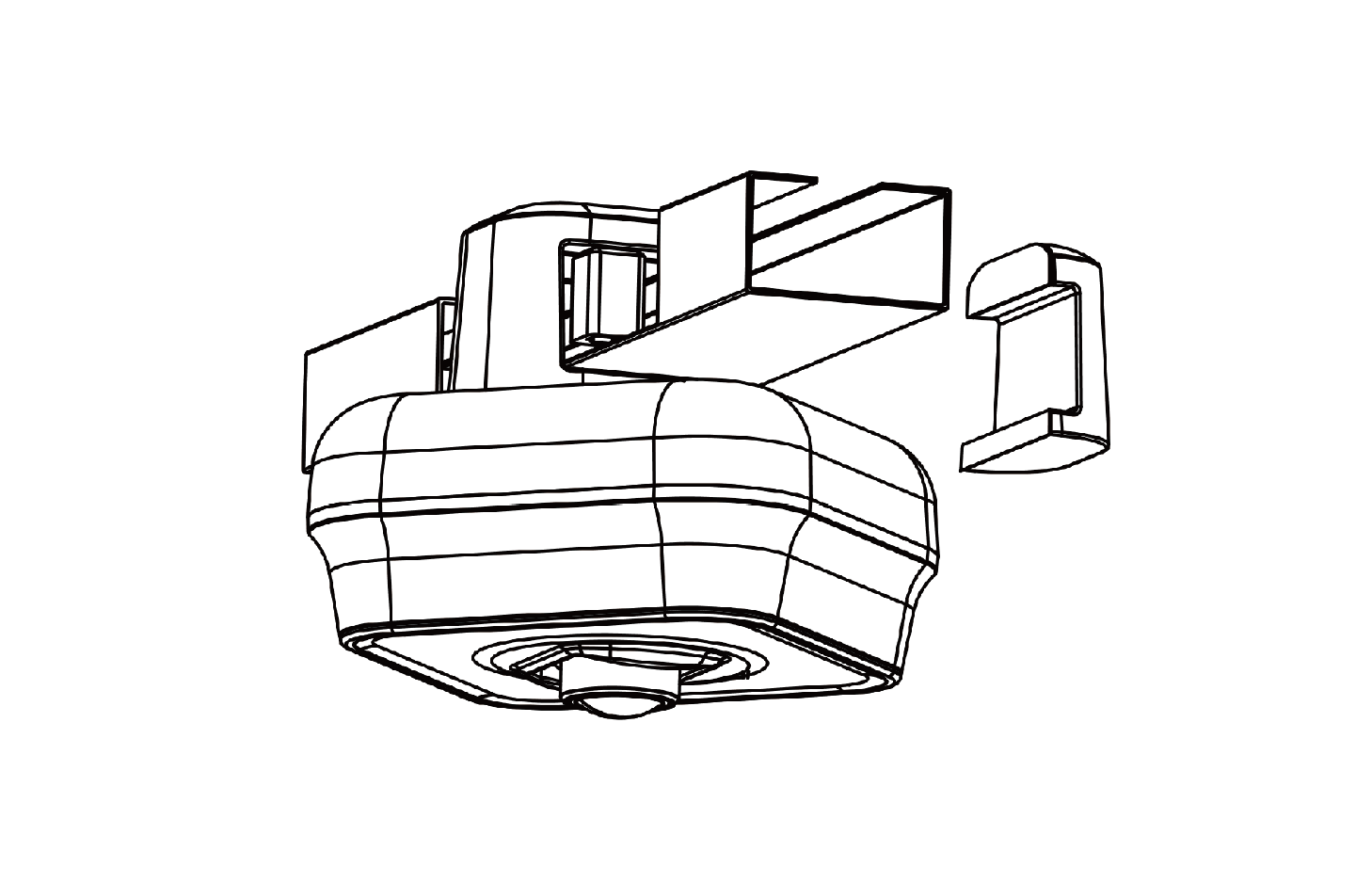

Easy to install

This model is designed to be very easy to install and reduce the installation costs. You can only install IP camera sensor in the middle of driveway on the ceiling. the recommended width of driveway is 6 meters (Max. 8 meters) and installing height is 2300~2400mm.

DETAILS


Imaging Device
SONY 1/1.7inch 12.4M CMOS
Effective Pixel
4,072(H) x 3,046(V)
Scanning Method
Progressive scan
Operating Illumination
20 lux @ F2.4
Electronic Shutter
37-600137 (unit : micro sec.)
Other Functions
High Intensity LED lights, up to 128 programmable colors / WDR / Defog
Ethernet
RJ-45 (100/1000 BASE-T)
Video Compression
H.264 BP/MP/HP, MJPEG/JPEG Baseline encoding
Real-time Multi-stream
H.264 - 3840x2160@30fps + 1080p@30fps + 3840x2160@2fps JPEG snapshot
Bitrate Control
H.264 - CBR, VBR, AVBR, FIXQP
Operation Environment
Operation temperature / humidity: -10℃ ~ +55℃ / Under 90% RH
Power Supply
PoE (IEEE802.3af class3)
Electricity Consumption
Approximately 10W
IP rate
IP54
